Rapid tooling and rapid injection moulding are the magic words – and yet describe everything but magic: they are part of the comprehensive problem-solving expertise in injection moulding with which we take on your remit. From the efficient production of injection moulds made of high-strength aluminium to the rapid, economical production of high-precision injection moulded parts on our own injection moulding machines. Rely on our experience and quality management to ensure we meet your exact requirements.

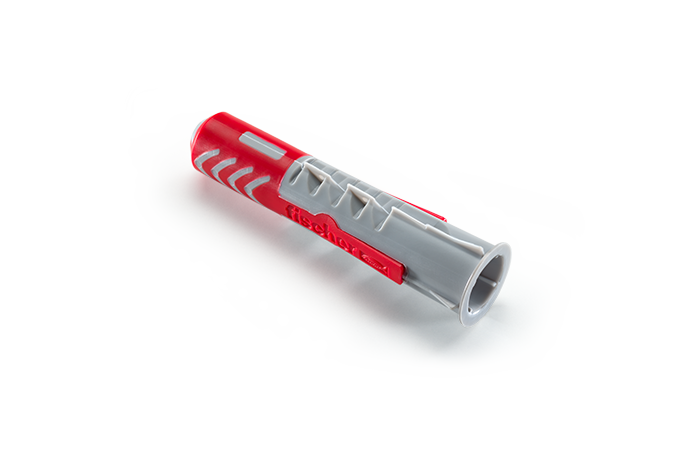

2-COMPONENT DOWEL
2-COMPONENT DOWEL
Material:
1. PA6 components
2. PP components
Dimensions: 64 x 16 x 18 mm
Weight: 9.80 g
Special features: Product consists of two components, delivery time 15 working days
Product tasks: Dowel

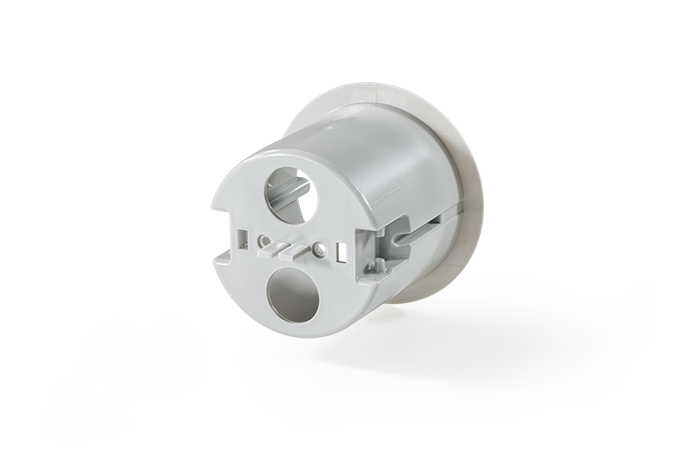

FLUSH-MOUNTED BOX
FLUSH-MOUNTED BOX
Material: PC Lexan 161 R
Dimensions: 83 x 83 x 80 mm
Weight: 33.92 g
Special features: 2 slides
Product tasks: Socket for light installation

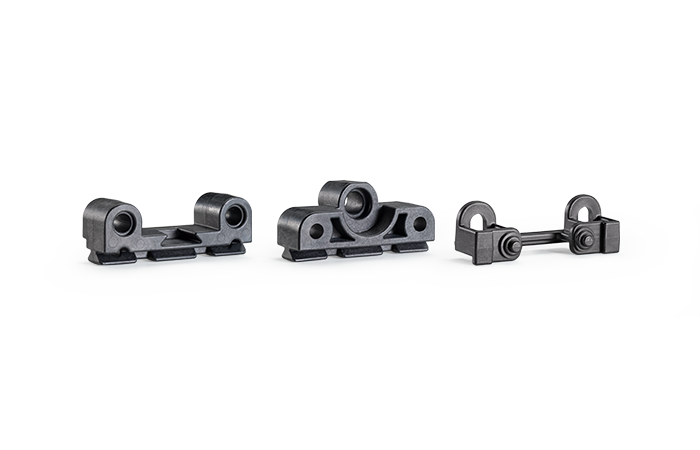

BRACKET MADE FROM PA66 GF35
BRACKET MADE FROM PA66 GF35
Material: PA66 GF35 Durethan DP AKV 30 with flame retardant
Dimensions:
Carrier plate holder: 15 x 40 x 13 mm
Display holder: 19 x 40 x 18 mm
Sensor holder: 15 x 41 x 14 mm
Weight:
Carrier plate holder: 4.76 g
Display holder: 6.26 g
Sensor holder: 2.14 g
Special features: 1+1+1 cavity tool
Product tasks: Mechanics for passenger information systems

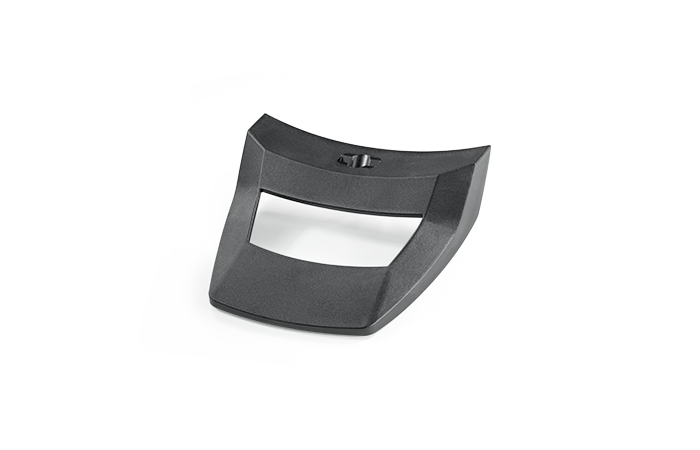

PIECE OF FURNITURE'S RELEASE LEVER
PIECE OF FURNITURE'S RELEASE LEVER
Material: Black PA66 GB30
Dimensions: 119 x 30 x 117 mm
Weight: 62.54 g
Special features: 1 oblique core
Product tasks: Lever for chair

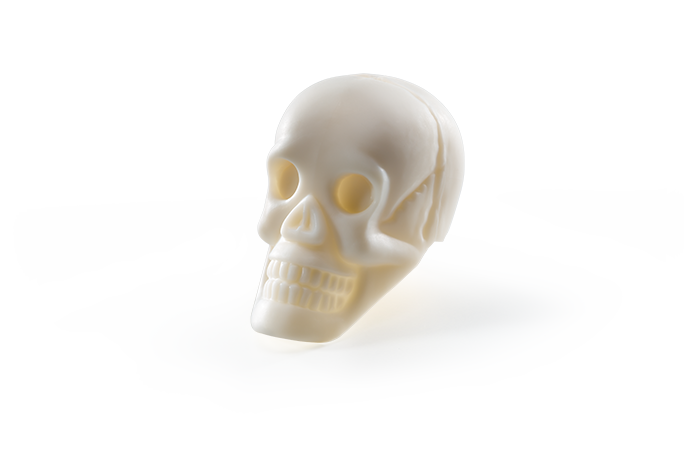

LID OF A SPICY SAUCE
LID OF A SPICY SAUCE
Material: TPE Santoprene 8221-65M300
Dimensions: 58 x 39 x 60 mm
Weight: 22.52 g
Special features: Small series of 4-cavity tools with sliders
Product tasks: The skull covers a sauce bottle cap.

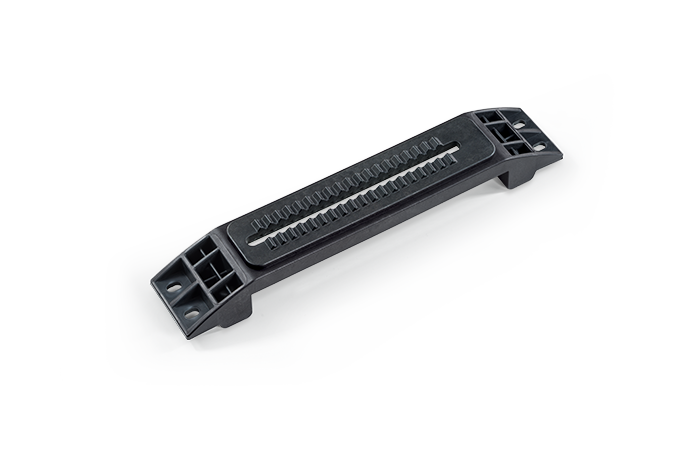

MONITOR SUPPORT
MONITOR SUPPORT
Material: PA66 GF35 Durethan DP AKV 30 with flame retardant
Dimensions: 46 x 252 x 36 mm
Weight: 138.85 g
Product tasks: Bracket for passenger information systems

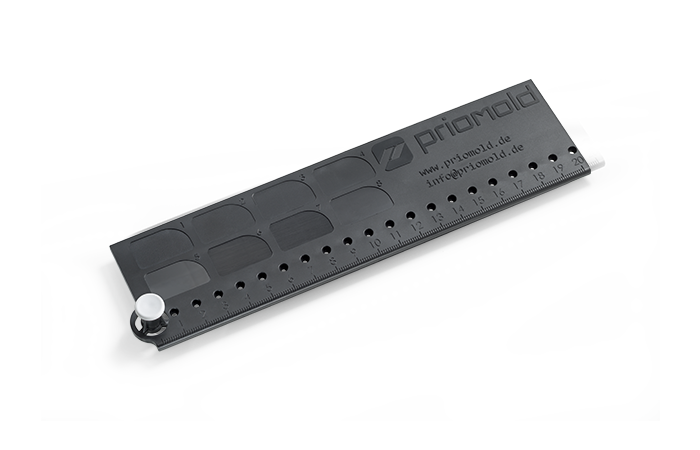

PROMOTIONAL ITEMS MADE FROM ABS
PROMOTIONAL ITEMS MADE FROM ABS
Material: ABS Cycolac MG 94 black
Dimensions: 213 x 55 x 12 mm
Weight: 19.88 g
Product tasks: Ruler/surface pattern as promotional item

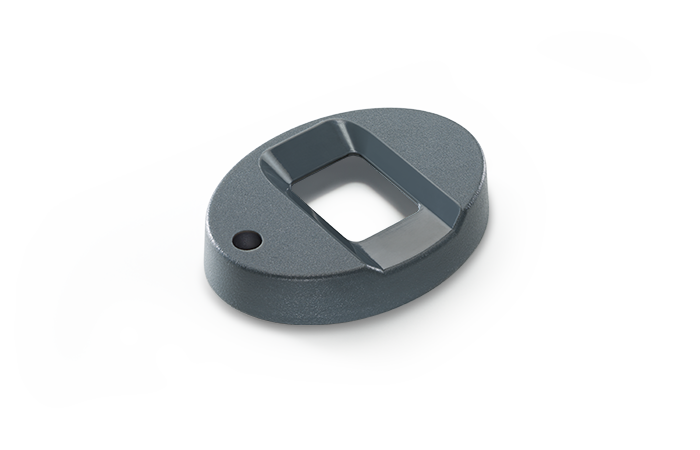

HOUSING FOR A FINGERPRINT SENSOR
HOUSING FOR A FINGERPRINT SENSOR
Material: ABS Cycolac MG94
Dimensions: 53 x 39 x 11 mm
Weight: 4.01 g
Special features: Polished and blasted surfaces
Product tasks: Fingerprint reader for time recording system

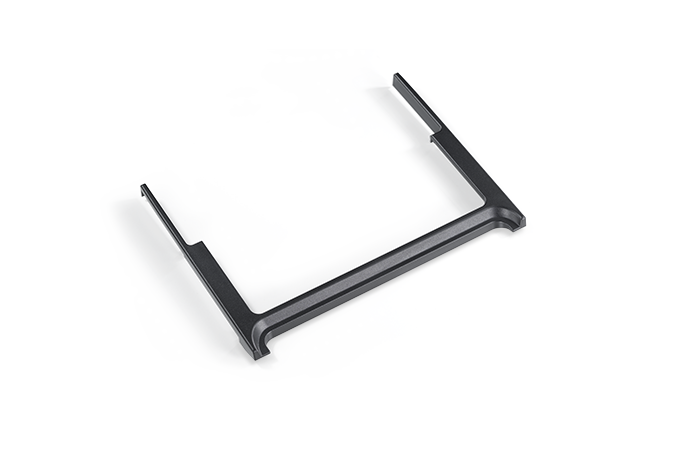

CENTRE CONSOLE COVER
CENTRE CONSOLE COVER
Material: Black ABS Elix H801
Dimensions: 200 x 146 x 14 mm
Weight: 21 g
Product tasks: Centre console cover panel

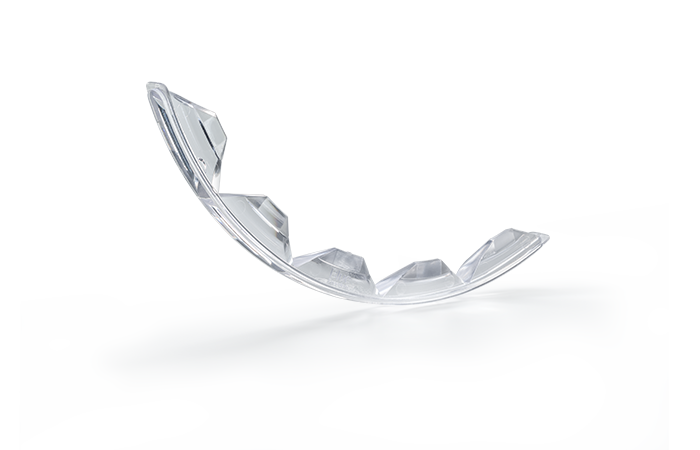

FIBRE OPTIC MADE FROM CRYSTAL CLEAR PC
FIBRE OPTIC MADE FROM CRYSTAL CLEAR PC
Material: Transparent PC Lexan 920A
Dimensions: 160 x 40 x 10 mm
Weight: 12.68 g
Product tasks: Light guide for LEDs

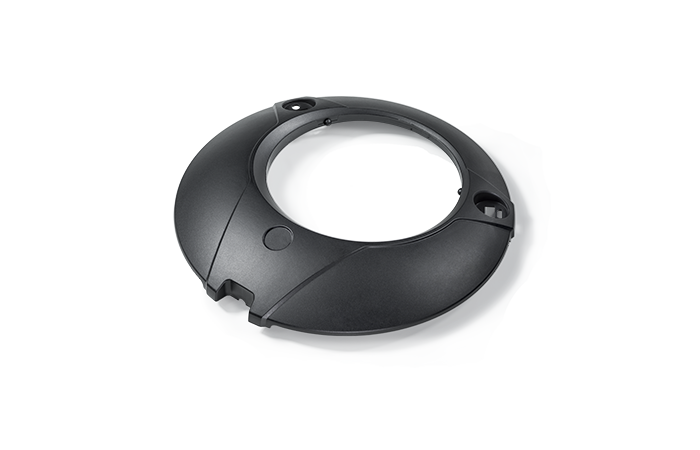

HOUSING MADE FROM PC ABS WITH FIRE PROTECTION
HOUSING MADE FROM PC ABS WITH FIRE PROTECTION
Material: PC/ABS Bayblend FR3000
Dimensions: 209 x 210 x 32 mm
Weight: 83 g
Product tasks: Complex housing component for mini hydropower plant

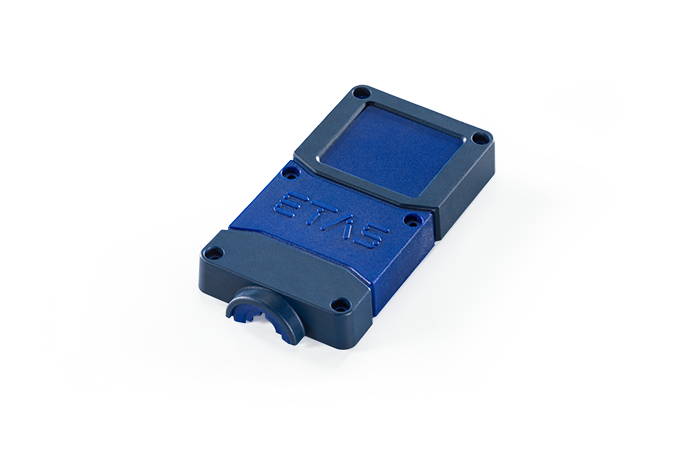

2-COMPONENT UPPER HOUSING PART
2-COMPONENT UPPER HOUSING PART
Material:
1. PA66 GF30 Ultramid A3EG6 components
2. TPE Thermolast TC7PAN components
Dimensions:
Bottom: 88 x 47 x 13 mm
Top: 88 x 47 x 16 mm
Gewicht:
Bottom: 24.99 g
Top: 25.20 g
Special features: Product consists of two components/1+1 cavity tool
Product tasks: Housing for control in an automotive environment
Prototype injection moulding
Test your component’s readiness to enter into series production: the prototypes manufactured by us provide you with a meaningful result in terms of construction and design.
Small series injection moulding
Our small series injection moulding enables you to flexibly cover your annual requirement for injection moulded parts and reliably supply your customers. Without needing to produce cost-intensive series tools, we can produce quantities of 50,000+ injection moulded parts on our high-quality tools. And even when using several aluminium tools, there is usually a cost advantage over a steel series tool.
Insert & outsert technology
Insert technology has proven itself as a method for prototype and small series production with low peripheral complexity: Prefabricated metal parts (inserts) are inserted by hand and overmoulded with thermoplastic materials in the process. With outsert technology, the insert which the plastic is injected onto has a larger surface area than the plastic. Ideal for complex hybrid components!
Two-component & multi-component injection moulding
We realise the rapid and economical production of your 2C plastic injection moulded parts made from different plastic materials using the 2C injection moulding process, in which two or more plastic components are processed using transfer technology. Thanks to this injection moulding technique, 2C or multi-component injection moulded parts can even be produced economically in small quantities.
3D printing – SLA prototyping
Fast and accurate – additive manufacturing in SLA rapid prototyping makes it possible to produce prototype samples and very small quantities. In this way, every single step can be checked and even complex geometries can succeed.
CNC-milled parts for prototypes
Thanks to our ultra-modern machines we offer a milling service with high dimensional accuracy. Our employees support you with a total of eleven ultra-modern 3 and 5-axis HSC milling machines to produce your prototype or small series. We need at least 3D data (STEP) and/or a drawing with tolerances for the enquiry.
Engineering
A wealth of experience in toolmaking, including reverse engineering and design suitable for injection moulding, will give you the perfect result for your injection moulded parts. We support you throughout the entire development process and in designing your components so that it is suitable for injection moulding.
WHY INJECTION MOULDING?
+Why should you prefer an injection moulded part to a 3D printed part?
Injection moulded parts from priomold match parts from series tools in terms of quality and surface finish. In addition, injection moulded parts reflect the true material properties of the respective plastic and are therefore suitable for visual and functional prototypes.
Are injection moulded parts expensive and complicated?
It can be economical to have injection moulded parts made by priomold even with small quantities. Thanks to our automated processes, we can produce plastic parts for you efficiently, cost-effectively and with a short cycle time. You can order injection moulded parts from us as easily as milling or 3D printing parts. We will provide you with a quote based on your CAD file and produce injection moulded parts within a few working days.
ENQUIRY AND OFFER
+What should an enquiry to priomold contain for us to be able to make you the most suitable offer possible?
It is best to supply us with the 3D data and/or drawing, the desired material, the initial quantity and, if applicable, the series quantity and application with your enquiry.
Which data formats can we process?
priomold works with common, international data interfaces that can be exported from virtually any CAD environment. These include STEP (.stp, .step), IGES (.igs, .iges), and STL (.stl).
How quickly can I get a quote from priomold?
Our priority is short turnaround times, and this also applies to preparing quotations. If you contact us using our enquiry form, you can expect a detailed quote within one working day.
PRODUCTION
+How do I design my plastic parts’ wall thicknesses?
Geometries of plastic parts produced by injection moulding should have the most homogeneous wall thickness possible. Accumulations of material and bulky wall thickness may lead to sink marks.
It is better to apply structures and reinforcing ribs rather than increase the wall thickness.
What makes a plastic injection moulded part expensive and complex?
High wall thickness can cause long cooling times and sink marks. Sink marks and gloss spots can form due to variations in wall thickness. These factors make the parts more expensive and complex to produce.
What makes a tool expensive and complex?
Internal undercuts make oblique cores necessary.
This results in high throughput times in toolmaking. Contour ejectors (i.e., there are no straight surfaces on which ejectors can be placed) require contour adjustments to the ejectors. All these factors make a tool more expensive and complex.
Which materials do we use?
We can process all common thermoplastics on our injection moulding machines. These include: thermoplastics such as ABS, PC, PA66, PA6, PC-ABS, POM, PP, PE, PEEK which are available with various fillers such as glass fibres, glass beads, carbon fibres, mineral fibres and much more. We also process thermoplastic elastomers (behave like rubber), such as TPE or TPV.
Who provides the material?
You are welcome to provide the material for your project yourself. You can indicate this immediately in our enquiry form.
Can I specify the shrinkage?
You are welcome to specify the plastic shrinkage yourself in our enquiry form.
Which quantities can we produce?
We produce injection moulded parts from a quantity of 1 to 100,000 pieces, depending on the plastic used and customer requirements.
SERVICES
+I do not have any in-house capacity, can priomold design components suitable for injection moulding or assist us with this?
We would be pleased to offer you the optimisation and/or design specifically for injection moulding based on your drawing or sample part. Our experts will then provide you with the revised component as a STEP file.
Does priomold offer complementary services such as painting, packaging, assembly or the like?
We have a large network of partners and can offer you many services. This way, you have one contact person for your project and get everything from one source. Please do get in touch with us!
What form of initial sampling does priomold offer?
priomold offers initial sampling according to VDA or according to customer requirements, just ask us for a quote! We also offer entries in IMDS upon request.
Is there a time limit for the storage of the tools?
Our standard free-of-charge storage period for your tools is three years after the last parts order.
How quickly can injection moulded parts be delivered to you?
Depending on the complexity of the component, priomold can supply you with plastic parts in series quality within a few working days. We have already completed projects in less than three working days. You can let us know what is your desired delivery date in our enquiry form.
